Product Details
Place of Origin: Guangdong , China
Brand Name: Jrkconn
Certification: ISO9001
Model Number: JFPC11ST Series
Payment & Shipping Terms
Minimum Order Quantity: 100 PCS
Price: Contact us
Packaging Details: As customer's requirements
Delivery Time: 7-15 Working days
Payment Terms: T/T, MoneyGram
Supply Ability: 1000000 per week
Type: |
180Degree |
Row: |
Single Row |
Pitch: |
2.54 Mm |
Terminal: |
Brass |
Insulator: |
PPS |
Pins: |
2~40P (optional) |
Insulation Resistance: |
1000 MΩ Min |
Current Rating: |
3AMP |
Type: |
180Degree |
Row: |
Single Row |
Pitch: |
2.54 Mm |
Terminal: |
Brass |
Insulator: |
PPS |
Pins: |
2~40P (optional) |
Insulation Resistance: |
1000 MΩ Min |
Current Rating: |
3AMP |
Our product line includes a wide range of connectors, and terminals, which are widely used in communication, medical, security, new energy, industrial control, and other fields.
Our main products are OEM/ ODM various kinds of Board-to-Board Connectors, Wire-to-Board Connectors, New Energy products, etc.
Here below are only some kinds of our products, if you don't find the parts you need, feel free to send us an inquiry for more solutions.
| Row | Single row |
| Pitch | 1.27MM/ 2.0MM / 2.54MM / special pitch, support customization |
| Color | Black, support customization |
| Insulator material | Black glass-filled polyester PPS+GF30 |
| Flammability | UL 94V-0 |
| Terminals material | Brass |
| Plated | Gold-plated, Tin plated |
| Mechanical life cycles | Min. 500 |
| Rated current | 3 Amp |
| Contact resistance | Max. 4mΩ |
| Insulation resistance | 500MΩ min. |
| Operating voltage | 60V AC/DC |
| Operating temperatures | Gold plating: from -55℃ to 125℃ Tin plating: from -40℃ to 105℃ |
| Selling Units | Single item |
| Package | Tube / PE Bag/Tray / Tape&Reel Packing |
| Port | Shenzhen |
| Quantity (pcs) | Samples | 1 - 100K | > 100K |
|
Estimated delivery time |
3 - 7 | 15 |
|

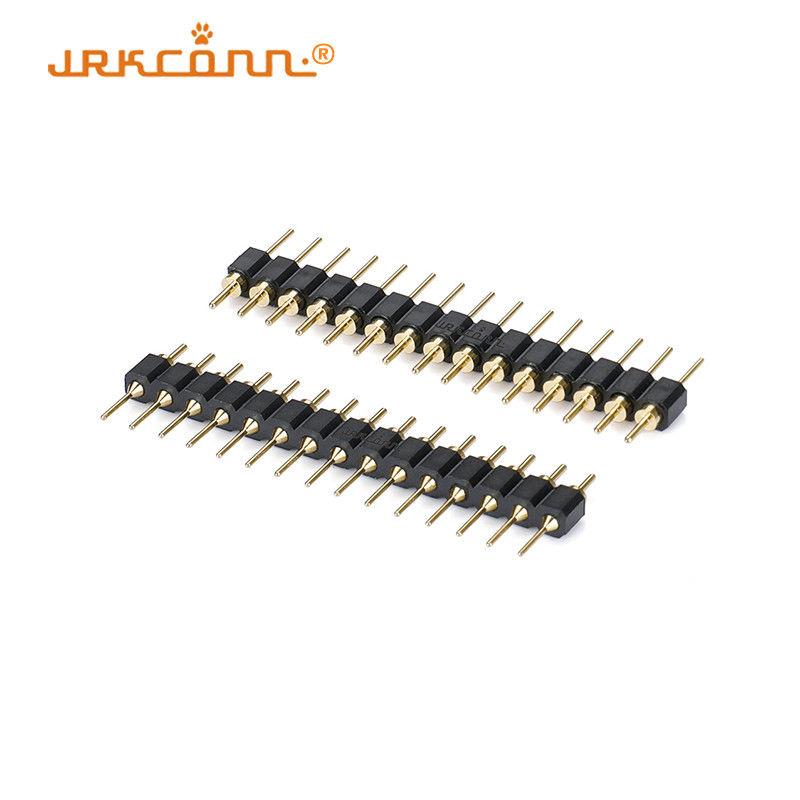

180 Degree Electronic Connectors Machined Pin Header 15Pin Male Connector Custom Process
1. A cost-saving solution to the customers.
2. Excellent after-sales service team.
3. Large-scale production capacity and complete connector production line.
4. Small order is accepted.
5. Shortest lead time.
We are a professional manufacturer with 15 years of experience specializing in electronic connectors. Our main products are pin headers, female headers, box headers, ejector headers, DIN41612 connectors, pins, and other electronic connectors, with good quality and competitive prices.
Yes, we provide the samples for our customers to check the quality of the product.
We recommend our customers take the samples from us before placing an order. This will help customers to understand our product and quality better.
They are free for 1 or 2 pcs samples, and customers only pay the express courier cost.
If a customer finds a quality problem, please get in touch with us; we will study the problem and provide solutions as fast as possible.
1. It will be perfect to attach any datasheets or pictures when you ask for an inquiry.
2. Otherwise, please specify the pitch/spacing dimension in millimeters of the product, and how many NO. of the PIN you require.
3. Pls specify to us the Mounting type with Through-hole(TH), right-angle (RA), or surface mount (SMT).
4. Pls specify to us if there are any special requirements for the Contact Plating level and Current Rating and Voltage Rating and Packing method.
5. What are your Order Quantity and Target Prices?
