Product Details
Place of Origin: Guangdong , China
Brand Name: Jrkconn
Certification: ISO9001
Model Number: JFPC11ST Series
Payment & Shipping Terms
Minimum Order Quantity: 100 PCS
Price: Contact us
Packaging Details: PE Bag Packing
Delivery Time: 7-15 Business days
Payment Terms: T/T
Supply Ability: 1000000 per week
Type: |
Machine Pin Header Connector |
Pitch: |
2.54mm |
No. Of Positions: |
Custom |
Row: |
Single Row |
Contact Material: |
Brass |
Insulation Material: |
PPS |
Gender: |
Male |
Current Rating: |
3AMP |
Type: |
Machine Pin Header Connector |
Pitch: |
2.54mm |
No. Of Positions: |
Custom |
Row: |
Single Row |
Contact Material: |
Brass |
Insulation Material: |
PPS |
Gender: |
Male |
Current Rating: |
3AMP |
Jrkconn machined pin header is used for the electric circuit that can be connected in blocked and isolated parts. It is a bridge that can transfer current and signal. It is used with a female header so that board-to-board can be connected. They are available with different pitches, such as 1.0mm, 1.27mm, 2.0mm, and 2.54mm. The main mounting type includes straight type, right angle type, and SMT type. Products are designed under ROHS and REACH standards.
We have hundreds of products, and only some of them are shown on the website. If you can not find the exact products you want on our website, please send an inquiry to us.
| Pitch | 1.27 mm / 2.0 mm / 2.54 mm / special pitch |
| Row | 1 - 4 rows |
| Color | Black, support custom |
| Insulation Material | Black glass-filled polyester PPS+GF30 |
| Flammability | UL 94V-0 |
| Contact Material | Brass Cuzn 36Pb3(C36000) |
| Contact Plating | Gold plating, Tin plating |
| Mechanical Life | Min. 500 cycles |
| Current Rating | 3 A |
| Contact Resistance | ≤4mΩ/Contact |
| Dielectric Strength | Min. 1000V |
| Operating Voltage | 60V |
| Operating Temperatures | Gold plating: from -55℃ to 125℃ Tin plating: from -40℃ to 105℃ |
| Selling Units | Single item |
| Package | Tube / PE Bag/Tray / Tape&Reel Packing |
| Port | Shenzhen |
| Quantity (pcs) | Sample | 1 - 100K | > 100K |
|
Estimated delivery time |
3 - 7 | 15 |
|

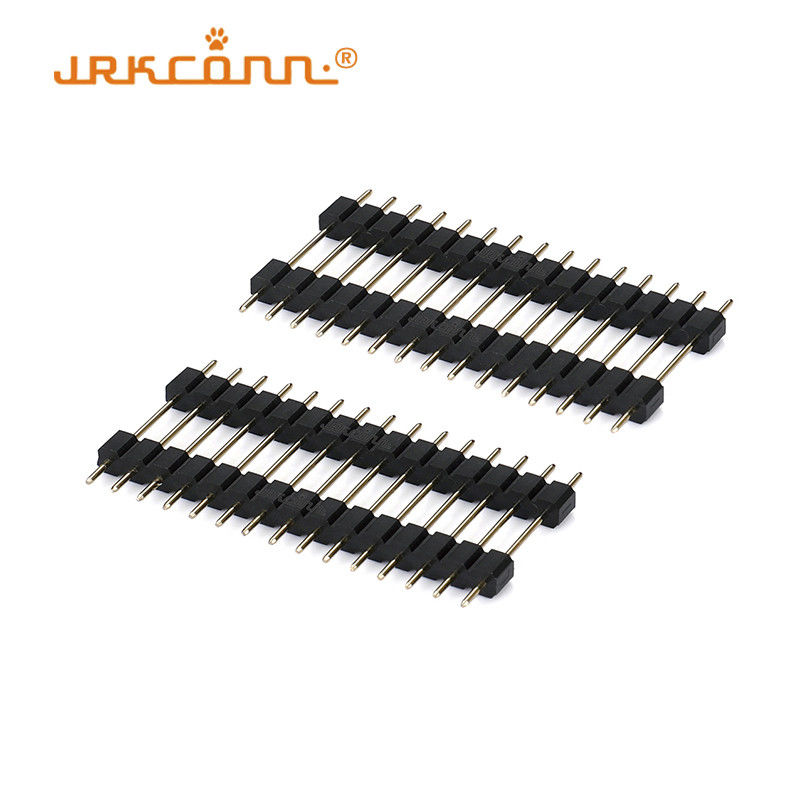

2.54mm Pin Header Machined Pin Header Gold-Plated 15 Pin Connector Custom Process
1. Pin Header connector is widely used in the electronic, and electrical, instruments in the PCB circuit board, its role is the circuit block or isolate between the circuits play a bridge function, and take up the task of current or signal transmission.
2. It is usually used with the female header to form a board-to-board connection. Or matching with the electronic wiring harness terminal, forming a board-to-wire connection.
3. It can also be used independently for board-to-board connection.
Our Advantages
1. Over 13 years of experience in the electronics connectors.
3. Quality and delivery guarantee.
4. Offering free samples.
5. Suppor OEM&ODM services.
6. One-stop service for you.
We are a professional manufacturer with 15 years of experience specializing in electronic connectors. Our main products are pin headers, female headers, box headers, ejector headers, DIN41612 connectors, pogo pins, and other electronic connectors, with good quality and competitive prices.
Yes, we provide the samples for our customers to check the quality of the product.
We recommend our customers take the samples from us before placing an order. This will help customers to understand our product and quality better.
They are free for 1 or 2 pcs samples, and customers only pay the express courier cost.
If a customer finds a quality problem, please get in touch with us; we will study the problem and provide solutions as fast as possible.
1. It will be perfect if you can attach any datasheets or pictures when you ask for an inquiry.
2. Otherwise, please specify the product's pitch/spacing dimension in millimeters, and how many NO. of the PIN you require.
3. Pls specify to us the Mounting type with Through-hole(TH), right-angle (RA), or surface mount (SMT).
4. Pls specify to us if any special requirements for the Contact Plating level and Current Rating and Voltage Rating and Packing method.
5. What are your Order Quantity and Target Prices?
