Product Details
Place of Origin: Guangdong, China
Brand Name: Jrkconn
Certification: ISO9001
Model Number: JFBH09VM Series
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: Contact us
Packaging Details: Tray Packing
Delivery Time: 7-14 working days
Payment Terms: T/T
Supply Ability: 1000000 per week
Pitch: |
2mm |
Type: |
180degree |
Contact Material: |
Brass |
Number Of Contacts: |
As Your Request |
Plastic Material: |
PA6T UL94V-0 |
Current Rating: |
2 Amp |
Pitch: |
2mm |
Type: |
180degree |
Contact Material: |
Brass |
Number Of Contacts: |
As Your Request |
Plastic Material: |
PA6T UL94V-0 |
Current Rating: |
2 Amp |
| Pitch | 1.27mm, 2.0 mm, 2.54mm (optional) |
| Insulator Material | Black polyester UL94V-0 |
| Standard | PA6T+30%GF |
| Contact Material | Brass |
| Color | Black |
| Plating | Gold plating, tin plating |
| Current Rating | 2Amps / contact max |
|
Contact Resistance |
≤ 20 mΩ / Contact |
| Insulation Resistance | ≥1000 MΩ at V=1000V |
| Withstanding Voltage | 1000V AC/minute |
| Operating Temperatures | Gold plating: from -55℃ to 125℃ Tin plating: from -40℃ to 105℃ |
| Soldering Temperature | +260℃, 10s max |
|
Selling Units |
Single item |
| Package | Tube / PE bag /Tray / Tape & Reel packing |
| Port | Shenzhen |
| Quantity (pcs) | 1 - 100K | ＞ 100K |
|
Estimated delivery time |
15 | To be negotiated |
Many Box Headers are available that are not listed on the website. If you do not find what you want, please contact us.

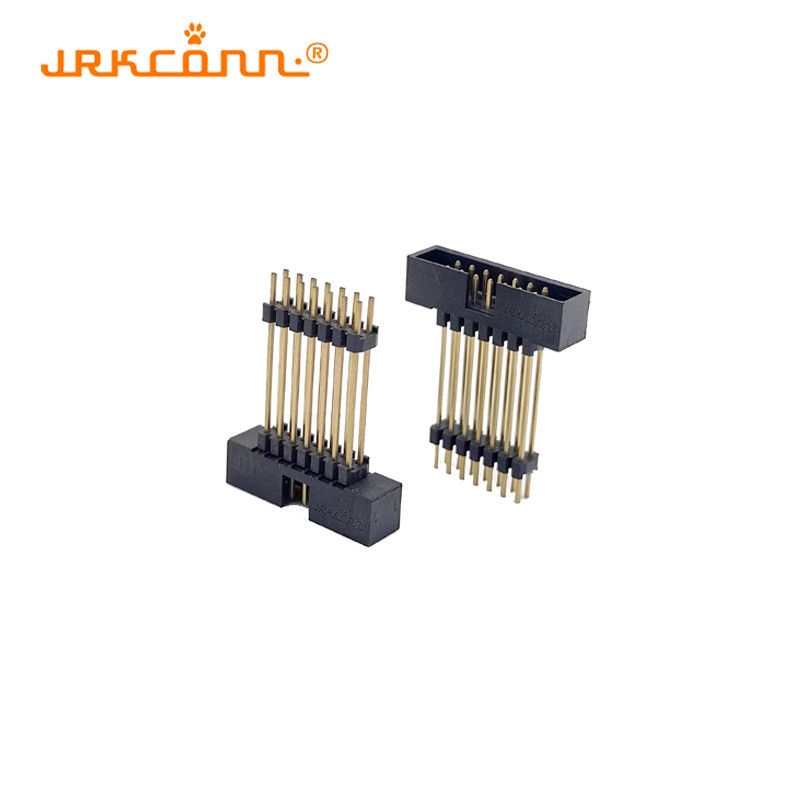

A Box Header, in the context of electronics, is a type of connector that is used to establish electrical connections between a circuit board and a cable or another component. It typically consists of one or more contact pins arranged in a specific pattern within a housing, which is designed to protect the pins from physical damage and ensure a secure connection.
The Box Header is mounted on a printed circuit board (PCB) and is often used in applications such as computer hardware, consumer electronics, automation equipment, and home appliances to connect the motherboard with external devices like hard drives, graphics cards, and more.
We are a professional manufacturer with 15 years of experience specializing in electronic connectors. Our main products are pin headers, female headers, box headers, ejector headers, DIN41612 connectors, pins, and other electronic connectors, with good quality and competitive prices.
2. Can I get the sample before placing a purchase order?
Yes, we provide the samples for our customers to check the quality of the product.
We recommend that our customers take samples from us before placing an order. This will help customers better understand our product and quality.
They are free for 1 or 2 pcs samples, customers only pay the express courier cost.
The standard sample delivery date is about 3~5 working days, and the customized samples need 7~10 business days.
If a customer finds a quality problem, please contact us; we will study the problem and provide solutions as fast as possible.
Always a pre-duction sample before mass production and a final inspection before shipment.
Sure, send us your drawing or sample.
1. It will be perfect if you can attach any datasheets or pictures when you ask for an inquiry.
2. Otherwise, please specify the product's pitch/spacing dimension in millimeters, and how many NO. of the PIN you require.
3. Pls specify to us the Mounting type with Through-hole(TH), right-angle (RA), or surface mount (SMT).
4. Pls specify to us if any special requirements for the Contact Plating level and Current Rating and Voltage Rating and Packing method.
5. What are your Order Quantity and Target Prices?
