Product Details
Place of Origin: Guangdong , China
Brand Name: Jrkconn
Certification: ISO9001
Model Number: JFSC11ST Series
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: Contact us
Packaging Details: As customer requirements
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 1000000 per week
Series: |

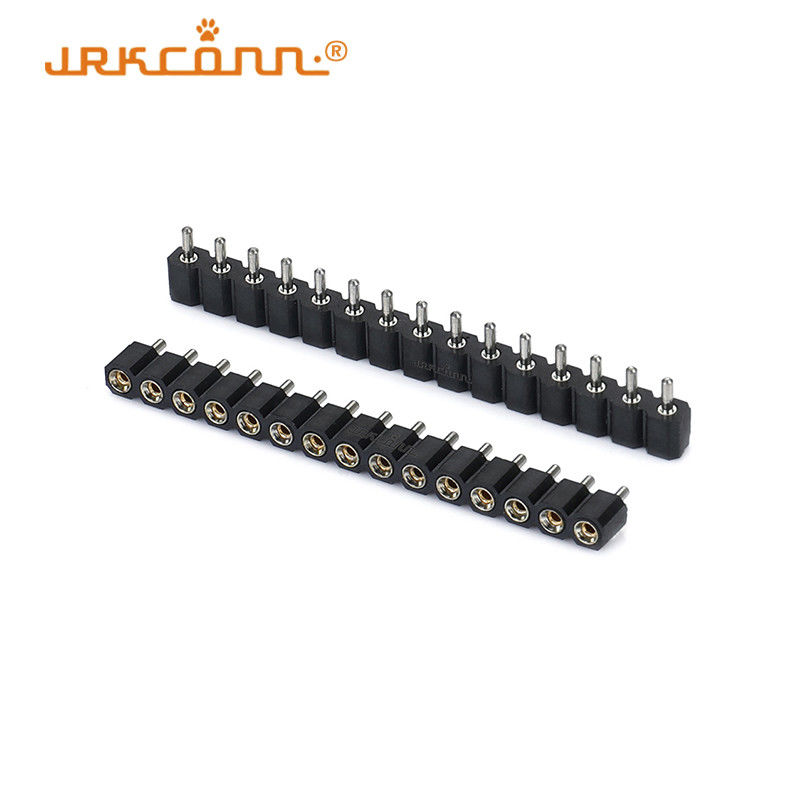

Machine Female Header |
Gender: |
Female |
Pitch: |
2.54mm |
Row: |
Single |
Housing: |
PPS UL94V-0 |
Contact Clip Material: |
Beryllium Copper |
Terminals: |
Brass |
Color: |
Black |
Series: |
Machine Female Header |
Gender: |
Female |
Pitch: |
2.54mm |
Row: |
Single |
Housing: |
PPS UL94V-0 |
Contact Clip Material: |
Beryllium Copper |
Terminals: |
Brass |
Color: |
Black |
| Insulation Material | Black glass-filled polyester PPS + G.F30 |
| Flammability | UL94V-0 |
| Pitch | 1.27mm / 2.0mm / 2.54mm / special pitch (optional) |
| Row | Single row |
| Terminal Material | Brass CuZn36Pb3 (C36000) |
| Contact Clip Material | Beryllium copper (C17200) |
| Plated (outer sleeve) | Tin plating, gold plating |
| Plated (contact clip) | Gold/Tin plating |
| Contact Resistance | Max. 10 mΩ |
| Rating Current | 3 Amp |
| Mechanical Life | Min. 500 cycles |
| Dielectric Strength | Min.1000V |
| Plating Temperature | Gold plating: from -55℃ to 105℃ Tin plating: from -40℃ to 105℃ |
| Selling units | Single item |
| Package | Tube / PE bag/ tray / tape&reel packing |
| Port | Shenzhen |
| Quantity (pcs) | 1 - 100K | > 100K |
|
Estimated delivery time |
15 |
|
Our Advantages:
1. Production experience: our factory has more than 15 years of experience in production electronics connectors assembly.
2. Complete variety and High-quality products: more than 1,000 kinds of products and all products are 100% ROHS Compliant and are strictly tested before shipment.
3. MOQ customization and Free samples: support low MOQ customization and free samples within 3-7 business days.
4. Attractive prices and Fast Lead Time: 90% automatic production enables us to finish customers' orders very quickly.
5. Excellent service: rapid response in 24 hours, no matter product inquiry or support. We'd like to do our best to support you by offering samples, products, or advice.
We are a professional manufacturer with 15 years of experience specializing in electronic connectors. Our main products are pin headers, female headers, box headers, ejector headers, DIN41612 connectors, pins, and other electronic connectors, with good quality and competitive prices.
Yes, we provide the samples for our customers to check the quality of the product.
We recommend our customers take the samples from us before placing an order. This will help customers to understand our product and quality better.
They are free for 1 or 2 pcs samples; customers only pay the express courier cost.
The standard sample delivery date is about 3~5 working days, and the customized samples need 7~10 working days.
If a customer finds a quality problem, please contact us, and we will study the problem and provide solutions as fast as possible.
Always a production sample before mass production and a final inspection before shipment.
Sure, send us your drawing or sample.
