Product Details
Place of Origin: Guangdong , China
Brand Name: Jrkconn
Certification: ISO9001
Model Number: JFSC11VMSeries
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: Contact us
Packaging Details: Tube packing+caton box packing
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 1000000 per week
Series: |
Machined Female Header Connector |
Pitch: |
2.54mm, Support Custom |
Gender: |
Female |
NO. Of Contacts: |
Custom |
Plastic Material: |
Black PPS |
Contact Material: |
Brass |
Series: |
Machined Female Header Connector |
Pitch: |
2.54mm, Support Custom |
Gender: |
Female |
NO. Of Contacts: |
Custom |
Plastic Material: |
Black PPS |
Contact Material: |
Brass |

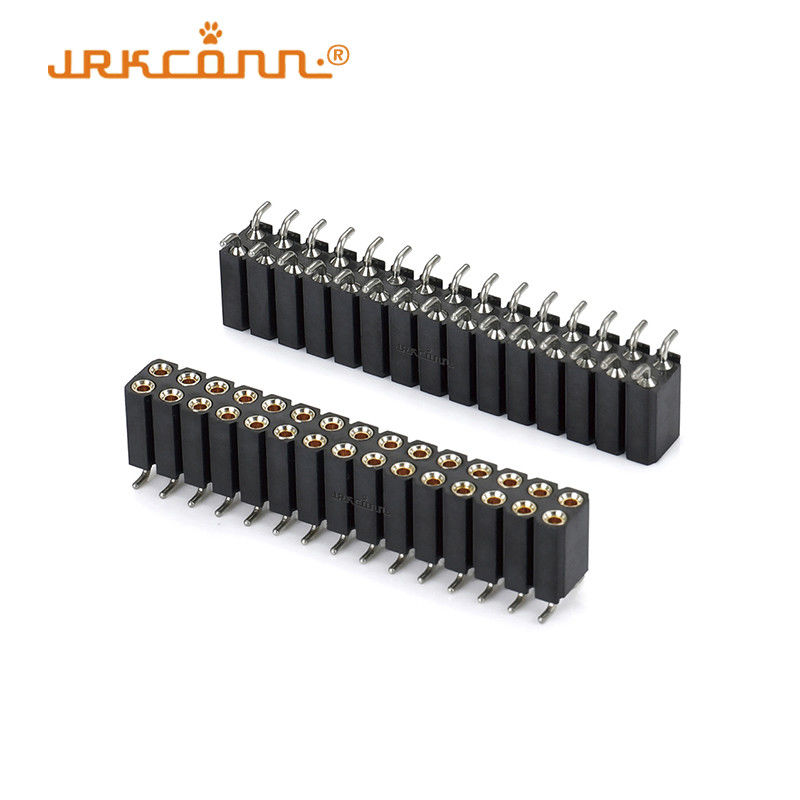

SMT PH 2.54mm Machined Female Header Smd Female Header Female Pin Connector Specifications
The Features Of Round Pin Female Header Connector:
1. High-precision machining ensures a perfect fit with mating connectors.
2. Durable construction for long-term use.
3. Reliable electrical connection performance.
4. Resistant to corrosion and wear.
5. Easy to install and remove.
6. Compact design saves space.
7. Can withstand various environmental conditions.
8. Offers stable signal transmission.
| Insulation Material | Black glass-filled polyester PPS + GF30 |
| Flammability | UL94V-0 |
| Pitch | 1.27mm / 2.0mm / 2.54mm / special pitch (optional), support custom |
| Row | Double row |
| Contacts | 2 to 80 Contacts |
| Color | Black, support custom |
| Terminal Material | Brass CuZn36Pb3 (C36000) |
| Contact Clip Material | Beryllium copper (C17200) |
| Plating (outer sleeve) |
Tin plated: 2µm/80µ"Ni, 5µm/200µ"Sn, Gold plated: 2µm/80µ"Ni, Full gold |
| Plating (contact clip) | 2µm/80µ"Ni, Gold or Tin plated |
| Contact Resistance | ≤4mΩ/Contact |
| Rating Current | 3 A |
| Mechanical Life | Min. 500 cycles |
| Insulator Resistance | ≥1000MΩ at V=1000V |
| Operating Voltage | 60VAC/DC |
| Operating Temperatures | Gold Plated: from -55°C to 105°C, Tin plated: from -40°C to 105°C |
| Selling units | Single item |
| Package | Tube / PE bag/ tray / tape&reel packing |
| Port | Shenzhen |
| Quantity (pcs) | 1 - 100K | > 100K |
|
Estimated delivery time |
15 |
|
You should tell us the following details:
1. The pitch of the product, eg:1.27mm, 2.0mm, 2.54mm, or special pitch.
2. The material of the insulator, outer sleeve, and contact clip.
3. The plating of the outer sleeve and contact clip that you want.Egg: the outer sleeve is Gold Plating, Tin Plating, or another plating. The contact clip is Gold/Tin Plating or other plating.
4. Your order quantity and your requirements.
1. Production experience: our factory has more than 15 years experience of in production electronics connectors assembly.
2. Complete variety and High-quality products: more than 1,000 kinds of products and all products are 100% ROHS Compliant and you are strictly tested before shipment.
3. MOQ customization and Free samples: support low MOQ customization and free samples within 3-7 business days.
4. Attractive prices and Fast Lead Time: 90% automatic production enables us to finish customers' orders very quickly.
5. Excellent service: rapid response in 24hours 7 days a week, no matter product inquiry or support. We'd like to do our best to support you by offering samples, products, or advice.
FAQ
We are a professional manufacturer with 15 years of experience specializing in electronic connectors. Our main products are pin headers, female headers, box headers, ejector headers, DIN41612 connectors, pins, and other electronic connectors, with good quality and competitive prices.
Yes, we provide the samples for our customers to check the quality of the product.
We recommend our customers take the samples from us before placing an order. This will help customers to understand our product and quality better.
They are free for 1 or 2 pcs samples; customers only pay the express courier cost.
The standard sample delivery date is about 3~5 working days, and the customized samples need 7~10 working days.
If a customer finds a quality problem, please contact us, and we will study the problem and provide solutions as fast as possible.
Always a pre-duction sample before mass production and a final inspection before shipment.
Sure, send us your drawing or sample.
