Product Details
Place of Origin: Guangdong , China
Brand Name: Jrkconn
Certification: ISO9001
Model Number: JFSC11ST Series
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: Contact us
Packaging Details: As customers requirements
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 100000 per week
Series: |
Machine Female Header |
Pitch: |
2.54mm |
Contacts: |
Square Contacts |
Insulation: |
PPS |
Gender: |
Female |
Pin: |
Custom |
Contact Clip Material: |
Beryllium Copper |
Terminals: |
Brass |
Series: |
Machine Female Header |
Pitch: |
2.54mm |
Contacts: |
Square Contacts |
Insulation: |
PPS |
Gender: |
Female |
Pin: |
Custom |
Contact Clip Material: |
Beryllium Copper |
Terminals: |
Brass |

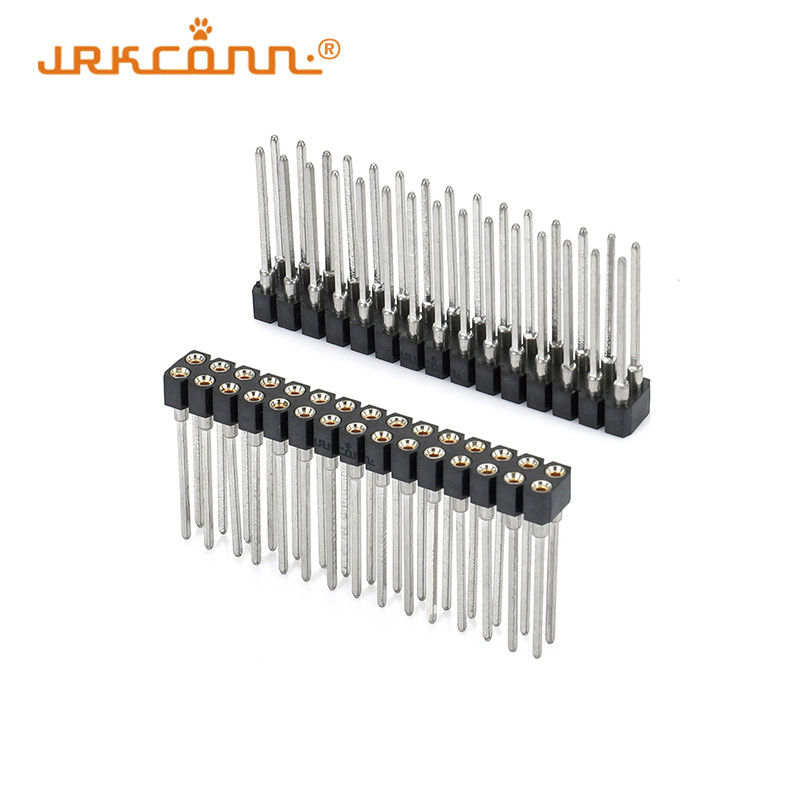

2.54mm H=3.0mm Machined Female Header Connector Square Pins Round Hole Specifications
| Insulation Material | Black glass-filled polyester PPS + GF30 |
| Flammability | UL94V-0 |
| Pitch | 1.27mm / 2.0mm / 2.54mm / special pitch (optional) |
| Row | Double row |
| Contacts | 2 - 80P |
| Color | Black, support custom |
| Terminal Material | Brass CuZn36Pb3 (C36000) |
| Contact Clip Material | Beryllium copper (C17200) |
| Plated (outer sleeve) | Tin plating, gold plating |
| Plated (contact clip) | Gold/Tin plating |
| Contact Resistance | Max. 10mΩ |
| Rating Current | 3 A |
| Mechanical Life | Min. 500 cycles |
| Dielectric Strength | Min.1000V |
| Plating Temperature | Gold plating: from -55℃ to 105℃ Tin plating: from -40℃ to 105℃ |
| Selling units | Single item |
| Package | Tube / PE bag/ tray / tape&reel packing |
| Port | Shenzhen |
| Quantity (pcs) | 1 - 100K | > 100K |
|
Estimated delivery time |
15 |
|
1. It will be perfect if you can attach any datasheets or pictures when you ask for an inquiry.
2. Otherwise, please specify the pitch/spacing dimension in millimeters of the product, and how many NO. of the PIN you require.
3. Pls specify to us the Mounting type with Through-hole(TH), right-angle (RA), or surface mount (SMT).
4. Pls specify to us if any special requirements for the Contact Plating level and Current Rating and Voltage Rating and Packing method.
5. What are your Order Quantity and Target Prices?
Our Service:
1. All products are 100% electrically tested before shipment, ensuring optimum performance.
2. Samples are always available. (Your drawings or specification requirements are always welcome.)
3. Any inquiry or question will be responded to within 24 hours.
4. Good after-sales service.
5. Welcome to visit our factory at any time.
6. Short lead-time.
We are a professional manufacturer with 15 years of experience specializing in electronic connectors. Our main products are pin headers, female headers, box headers, ejector headers, DIN41612 connectors, pins, and other electronic connectors, with good quality and competitive prices.
Yes, we provide the samples for our customers to check the quality of the product.
We recommend our customers take the samples from us before placing an order. This will help customers to understand our product and quality better.
They are free for 1 or 2 pcs samples, and customers only pay the express courier cost.
If a customer finds a quality problem, please get in touch with us, and we will study the problem and provide solutions as fast as possible.
