Product Details
Place of Origin: Guangdong , China
Brand Name: Jrkconn
Certification: ISO9001
Model Number: JFSC11RA Series
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: Contact us
Packaging Details: Tube Packing
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 1000000 per week
Series: |
Machined Female Header Connector |
Pitch: |
2.54mm |
Gender: |
Female |
NO. Of Pins: |
Custom |
Contact Material: |
Brass |
Type: |
R/A |
Series: |
Machined Female Header Connector |
Pitch: |
2.54mm |
Gender: |
Female |
NO. Of Pins: |
Custom |
Contact Material: |
Brass |
Type: |
R/A |

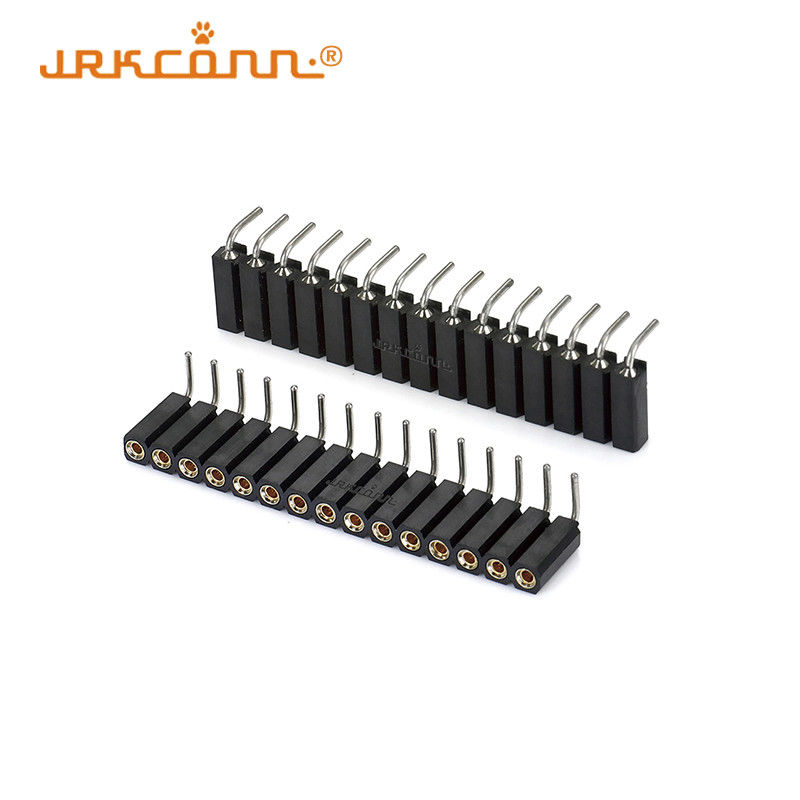

Round Female Socket Machined Female Header Connector Right Angle Female Header Specifications
| Insulation Material | Black glass-filled polyester PPS + GF30 |
| Flammability | UL94V-0 |
| Pitch | 1.27mm / 2.0mm / 2.54mm / special pitch (optional), support custom |
| Row | Single row |
| Contacts | 1 to 40 |
| Color | Black, support custom |
| Terminal Material | Brass CuZn36Pb3 (C36000) |
| Contact Clip Material | Beryllium copper (C17200) |
| Plating (outer sleeve) |
Tin plated: 2µm/80µ"Ni, 5µm/200µ"Sn, Gold plated: 2µm/80µ"Ni, Full gold |
| Plating (contact clip) | 2µm/80µ"Ni, Gold or Tin plated |
| Contact Resistance | ≤4mΩ/Contact |
| Rating Current | 3 A |
| Mechanical Life | Min. 500 cycles |
| Insulator Resistance | ≥1000MΩ at V=100V |
| Operating Voltage | 60VAC/DC |
| Operating Temperatures | Gold Plated:-55°C to +125°C, Tin plated:-40°C to +105°C |
| Selling units | Single item |
| Package | Tube / PE bag/ tray / tape&reel packing |
| Port | Shenzhen |
| Quantity (pcs) | 1 - 100K | > 100K |
|
Estimated delivery time |
15 |
|
1. Extensive connector options and customized services.
2. Free samples with 3 ~ 7 Working days.
3. High quality with a competitive price.
4. Low MOQ and fast lead time.
5. High efficiency / professional / responsibility.
6. One-stop service can save you time and cost.
We are a professional manufacturer with 15 years of experience specializing in electronic connectors. Our main products are pin headers, female headers, box headers, ejector headers, DIN41612 connectors, pins, and other electronic connectors, with good quality and competitive prices.
Yes, we provide the samples for our customers to check the quality of the product.
We recommend our customers take the samples from us before placing an order. This will help customers to understand our product and quality better.
They are free for 1 or 2 pcs samples, and customers only pay the express courier cost.
If a customer finds a quality problem, please get in touch with us, and we will study the problem and provide solutions as fast as possible.
