Product Details
Place of Origin: Guangdong , China
Brand Name: Jrkconn
Certification: ISO9001
Model Number: JFSC11VM Series
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: Contact us
Packaging Details: As customer requirements
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 100000 per week

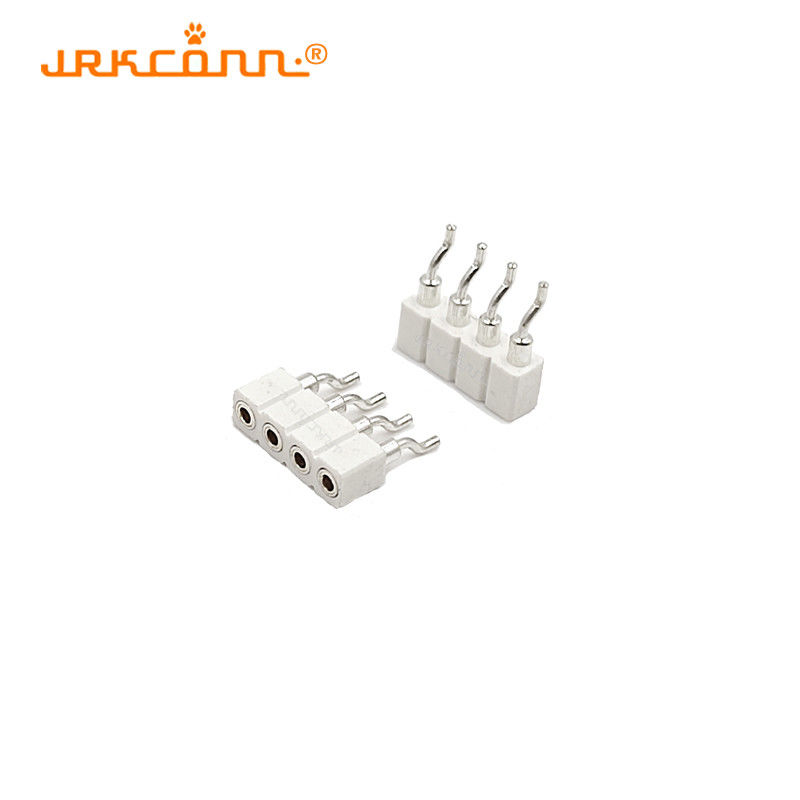

Series: |
Machine Female Header |
Gender: |
Female |
Pitch: |
2.54MM |
Row: |
Single Row |
Type: |
SMT |
Housing: |
White PPS |
Contact Clip Material: |
Beryllium Copper |
Terminals: |
Brass |
Series: |
Machine Female Header |
Gender: |
Female |
Pitch: |
2.54MM |
Row: |
Single Row |
Type: |
SMT |
Housing: |
White PPS |
Contact Clip Material: |
Beryllium Copper |
Terminals: |
Brass |
| Insulation Material | PPS + G.F30 |
| Flammability | UL94V-0 |
| Color | White, black, yellow, and red, support custom |
| Pitch | 1.27mm / 2.0mm / 2.54mm / special pitch (optional) |
| Terminal Material | Brass CuZn36Pb3 (C36000) |
| Contact Clip Material | Beryllium copper (C17200) |
| Plated (outer sleeve) | Tin plated: 2µm/80µ"Ni, 5µm/200µ"Sn, Gold plated: 2µm/80µ"Ni, Full gold |
| Plated (contact clip) | Gold plating, Tin plating |
| Contact Resistance | Max. 10 mΩ |
| Rating Current | 3 Amp |
| Mechanical Life | Min. 500 cycles |
| Dielectric Strength | Min.1000V |
| Operating Voltage | 60V |
| Plating Temperature | Gold plating: -55℃ to 105℃ Tin plating: -40℃ to 105℃ |
| Selling units | Single item |
| Package | Tube / PE bag/ tray / tape&reel packing |
| Port | Shenzhen |
| Quantity (pcs) | 1 - 100K | > 100K |
|
Estimated delivery time |
15 |
|
Many products are available that are not listed on the website. If you do not find what you want, please contact us.
You should tell us the following information:
1. The pitch of the product, eg:1.27mm, 2.0mm, 2.54mm, or special pitch.
2. The material of the insulator, outer sleeve, and contact clip, eg: the outer sleeve is Gold Plating, Tin Plating, or another plating. The contact clip is Gold/Tin Plating or other plating.
3. The plating of the outer sleeve and contact clip that you want.
4. Your order quantity and your requirements.
1. Production experience: our factory has more than 15 years experience of in production electronics connectors assembly.
2. Complete variety and High-quality products: more than 1,000 kinds of products and all products are 100% ROHS Compliant and are strictly tested before shipment.
3. MOQ customization and Free samples: support low MOQ customization and free samples within 3-7 business days.
4. Attractive prices and Fast Lead Time: 90% automatic production enables us to finish customers' orders very quickly.
5. Excellent service: rapid response in 24hours 7 days a week, no matter product inquiry or support. We'd like to do our best to support you by offering samples, products, or advice.
We are a professional manufacturer with 15 years of experience specializing in electronic connectors. Our main products are pin headers, female headers, box headers, ejector headers, DIN41612 connectors, pins, and other electronic connectors, with good quality and competitive prices.
Yes, we provide the samples for our customers to check the quality of the product.
We recommend our customers take the samples from us before placing an order. This will help customers to understand our product and quality better.
They are free for 1 or 2 pcs samples, and customers only pay the express courier cost.
The standard sample delivery date is about 3~5 working days, and the customized samples need 7~10 working days.
If a customer finds a quality problem, please get in touch with us, and we will study the problem and provide solutions as fast as possible.
